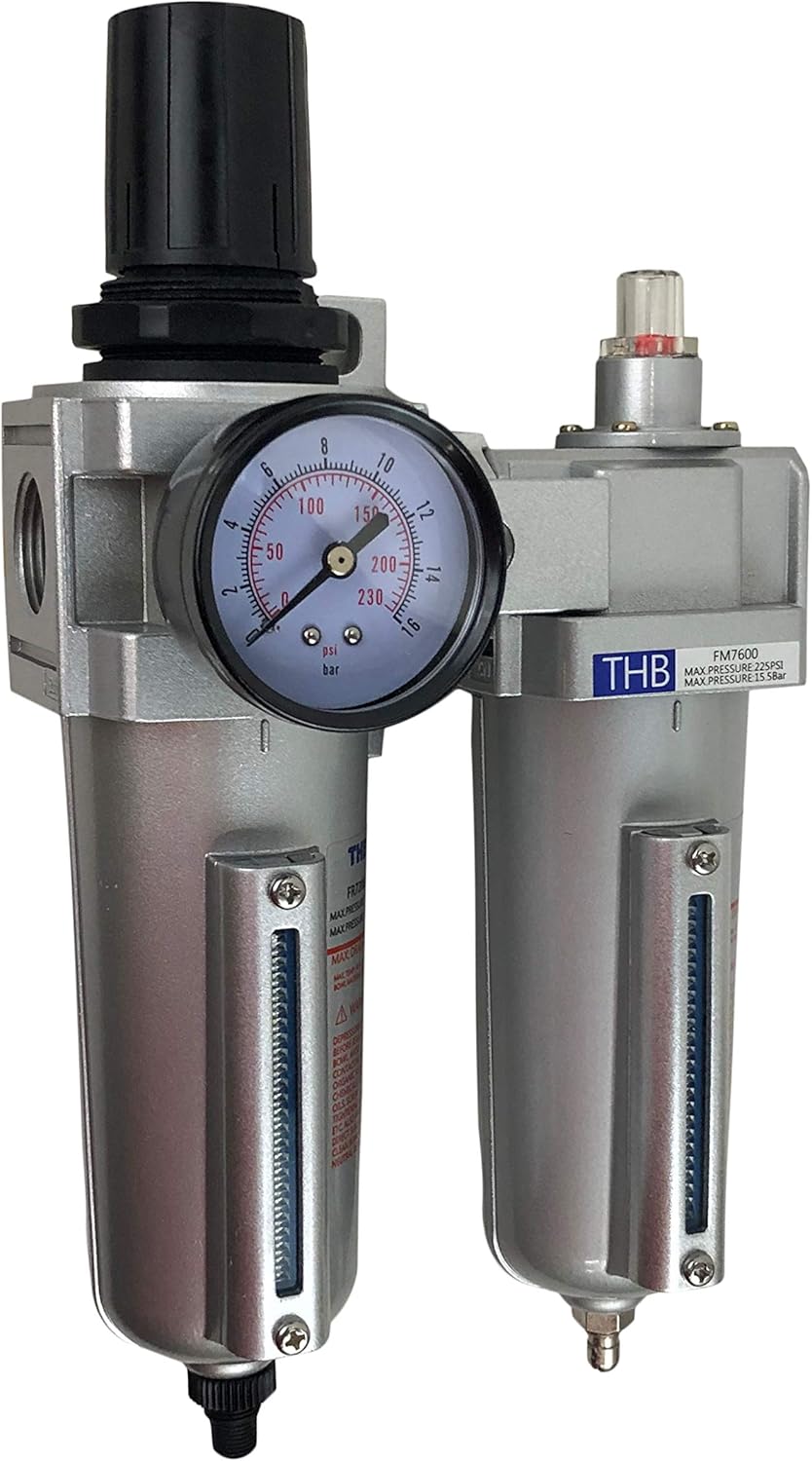

1/2" HEAVY DUTY COMBO PARTICULATE & COALESCING FILTER REGULATOR COMPRESSED AIR WITH AUTOMATIC DRAIN

1/2" HEAVY DUTY HIGH FLOW COMBINATION FILTER / REGULATOR & COALESCING FILTER W/ GAUGE. 215 PSI MAX OUTPUT COMPLETE WIHT INTERNAL FLOAT DRAIN ( AUTO DRAIN) 1/2" FEMALE NPT INLET X 1/2" FEMALE NPT OUTLET EQUIPPED WITH WALL MOUNTING BRACKET DESIGNED FOR BOTH 1 STAGE AND 2 STAGE APPLICATIONS 250 PSI MAX INPUT PRESSURE 215 PSI MAX OUTPUT PRESSURE PARTICULATE FILTER REMOVES 95% OF MOISTURE, OIL AND DEBRIS REGULATOR WILL REGULATE AIR PRESSURE BETWEEN 7 - 225 PSI COALESCING FILTER WILL REMOVE 99.98% OF THE REMAINING DEBRIS THE PARTICULATE LEAVES BEHIND. BY IMPLEMENTING A PARTICULATE FILTER BEFORE YOUR COALESCING FILTER, YOU WILL BE EXTENDING THE LIFE OF YOUR COALESCING FILTER ELEMENT 5 FOLD WHILE PROVIDING CLEAN AIR LINES TO YOUR COMPRESSED LINE SYSTEM. FILTER / REGULATOR SPECS: 1/2" ( TOP AND BOTTOM PIGGY BACK TYPE) 215 PSI MAX OUTPUT 5 MICRON FILTER INCLUDED REMOVES 95% OF CONTAMINANTS INTERNAL FLOAT DRAIN ( AUTO DRAIN ) 2.7oz BOWL CAPACITY ( METAL BOWL) WITH VISIBLE SIGHT GLASS 120 CFM FLOW RATE EQUIPPED WITH CENTER BACK MOUNT PRESSURE GAUGE 7 - 225 ADJUSTMENT PRESSURE COALESCING FILTER SPECS: 1/2" MAX PRESSURE: 215 PSI OUTPUT INLET OUTLET: 1/2" INLINE 0.01 MICRON FILTER REMOVES 99.98% OF THE DEBRIS THAT THE PARTICULATE LEFT BEHIND - 2.7oz METAL BOWL WITH VISIBLE SIGHT OPERATING & INSTALLATION INSTRUCTIONS INCLUDED

• 1/2" HEAVY DUTY HIGH FLOW COMBINATION FILTER / REGULATOR & COALESCING FILTER W/ GAUGE. 215 PSI MAX OUTPUT
• 1/2" FEMALE NPT INLET X 1/2" FEMALE NPT OUTLET
• 250 PSI MAX INPUT PRESSURE 215 PSI MAX OUTPUT PRESSURE
• WILL REGULATE AIR PRESSURE BETWEEN 7 - 225 PSI
• METAL BOWL AND VISIBLE SIGHT GLASS & AUTO DRAIN
